KNT-50

Joint Crack Sealer Machine
Product Demonstration Video of KNT-50<>/span>

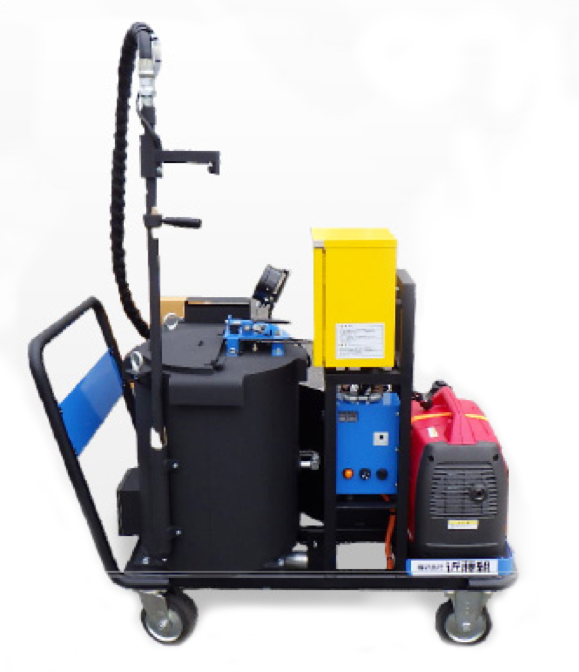

KNT-50: Joint Crack Sealer Machine

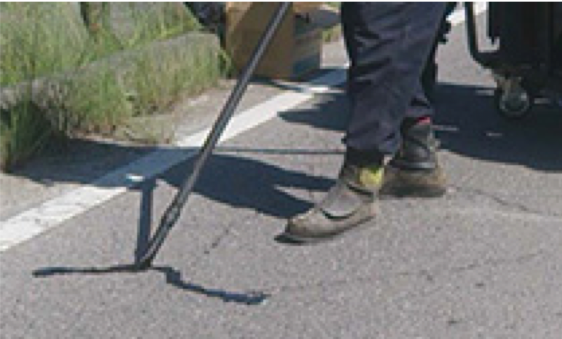

KNT-50 is a portable machine that easily injects melted sealant into joint of concrete , cracks of pavement, construction joint of waterworks/drainage pipes, gas supply pipes, etc. It is manufactured using Japanese Technology from the TOYO Manufacturing Company and EXCLUSIVELY DISTRIBUTED in the Philippines by Diamond CMX.

KEY FEATURES

- Easy to operate on construction sites

- Directly-filed melting pot melts sealant directly - Direct melting handles about 25 kg./1-1.5 hours depending on materials used

- Works with externally-supplied power or inverter generator

- Heating burner is equipped with LPG pilot (heats up efficiently)



- Pump unit with geared motor is designed with special structure for higher maintainability and operation but with low vibration and noise

- Reduced risk by moving the geared pump to outside the melting pot

- Inverter control enables adjustment of discharge volume of sealant

- Switch at the nozzle handle can be used to start and stop the machine

- Cleaning operation can be done safely and easily

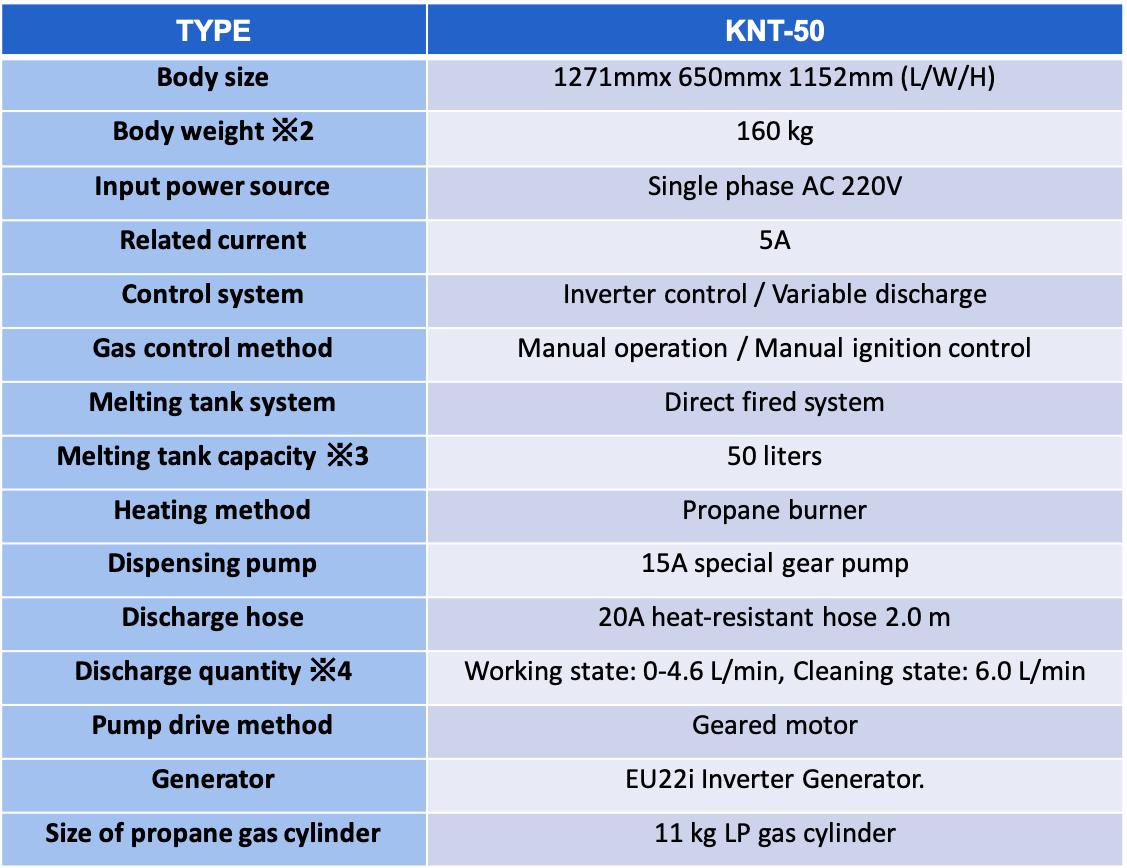

ALL ABOUT KNT-50



Please note that:

KNT-50 can handle direct melting of about 25 kg/1-1.5hr, depending on materials used. The machine weight refers to dry weight without a generator and an LPG container. The Pot Capacity is about 50 liters and slightly varies depending on specific weight of materials used.The Discharge Volume varies depending on the temperature and properties of  materials used.


KNT-50 is approved for use in the Philippines as a Cracks/Joints Sealer Machine. It injects melted sealant into joints of concrete, cracks of pavement, construction joint of waterworks/drainage pipes, gas supply piples.The injection of hot asphalt-based sealant employs hot injection sealant made of asphalt-tuber and other materials

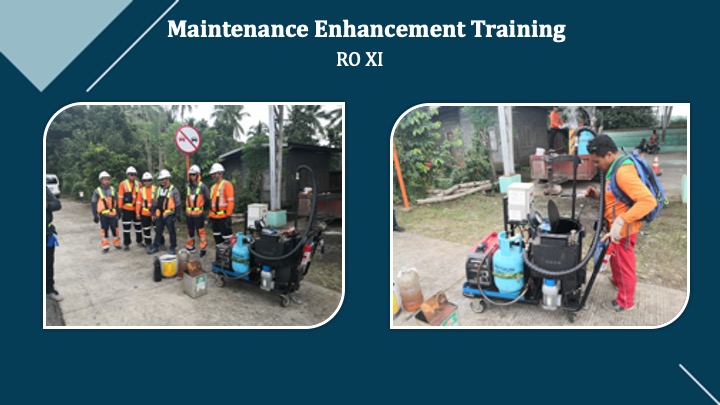

In the Philippines, KNT-50 already has a proven track record:






To learn more about KNT-50, download our e-Brochure in PDF format by clicking the button below.

DOWNLOAD BROCHURE PDF
